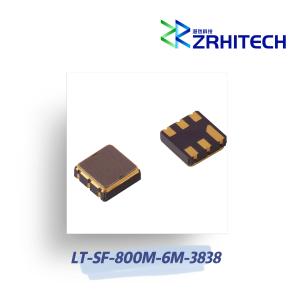

800MHz RF SAW Band Pass Filter

Name: 800MHz RF SAW Band Pass Filter
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SF-800M-6M-3838

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-SF series RF SAW Filter

Application : Wireless Communication

Features : High Rejection

Material : Aluminum

Temperature : -40~85℃

Frequency range : 797 to 803 MHz

Color : Silver

Low Insertion Loss : 2.0 to 3.0 dB

Contact Now

800MHz LT-SF series RF SAW Band Pass Filter

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Sourface Mount Package

· Small Size

· Low Cost

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SF-800M-6M-3838 from ZR is a Band Pass Filter with Frequency 797 to 803 MHz, Bandwidth 6 MHz, Center Frequency 800 MHz,Insertion Loss 2 to 3 dB, Rejection 17 to40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-800M-6M-3838 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-SF-800M-6M-3838
Center Frequency	800MHz
Insertion Loss	-
Insertion Loss(797.00~803.00MHz)	3.0dB Max.; 2.0dB Typ.
Ripple in Bandwidth	1.0dB Max.; 0.7dB Typ.
Group Delay Variation	30ns Max.; 10ns Typ.
Input VSWR	2.0 Max.; 1.5 Typ.
Output VSWR	2.0 Max.; 1.5 Typ.
Attenuation	40dB Min.@DC-780MHz
	33dB Min.@820.00~1000.00MHz
	17dB Min.@1000.00~1800.00MHz
	40dB Min.@1800.00~2500.00MHz
	35dB Min.@2500.00~3000.00MHz
Dimension	3.8x3.8x1.35mm
Note: for custom specs, please contact us directly.

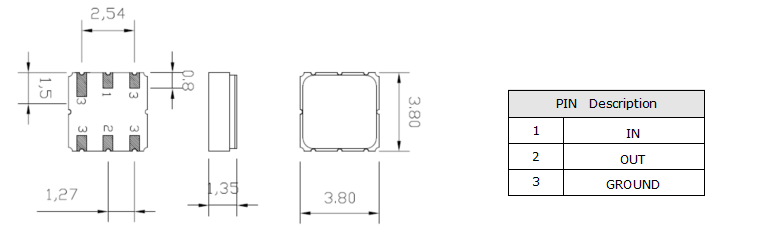

Outline Drawing (Unit: mm):

800MHz RF SAW Band Pass Filter
