18 to 40 GHz Low Noise Amplifiers with 15 dB Small Signal Gain

Name: 18 to 40 GHz Low Noise Amplifiers with 15 dB Small Signal Gain
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-PA-180400-G15P12

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-PA series Power Amplifier

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 18 to 40 GHz

Color : Silver

Contact Now

18 to 40 GHz LT-PA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Small Signal Gain 15dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PA-180400-G15P12 from ZR is a RF Amplifier with Frequency 18 to 40 GHz, Small Signal Gain 15 dB, Gain Flatness ± 4.5 dB, Output Power 12dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA-180400-G15P12 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-PA-180400-G15P12
Configuration	Module with Connector
Frequency Range	18 to 40 GHz
Small Signal Gain	15 dB
Gain Flatness	±4.5 dB
Output Power	12 dBm
Input Power	10 dBm
VSWR	2.0:1
Power Supply	+12V / 500mA
Operating Temperature	-40 to +70 ℃
Dimension	34.416.88.1 mm
Note: for custom specs, please contact us directly.

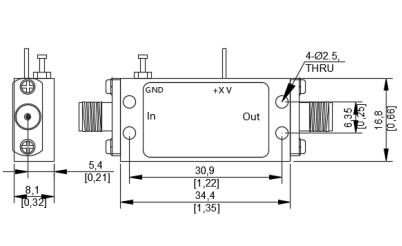

Outline Drawing (Unit: mm):
