2 To 10 GHz 10dBm Power Amplifier with 30 dB Small Signal Gain

Name: 2 To 10 GHz 10dBm Power Amplifier with 30 dB Small Signal Gain
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-PA-020100-G30P10

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-PA series Power Amplifier

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 2 to 10 GHz

Color : Silver

Contact Now

2 to 10 GHz LT-PA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Small Signal Gain 30dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PA-020100-G30P10 from ZR is a RF Amplifier with Frequency 2 to 10 GHz, Small Signal Gain 30 dB, Gain Flatness ±2.5 dB, Output Power 10dBm, Input Power 20 dBm. Tags: Power Amplifier. More details for LT-PA-020100-G30P10 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-PA-020100-G30P10
Configuration	Module with Connector
Frequency Range	2 to 10 GHz
Small Signal Gain	30 dB
Gain Flatness	±1.5 dB
Output Power	10 dBm
Input Power	20 dBm
VSWR	2.0:1
Power Supply	+12V / TBD mA
Operating Temperature	-45 to +85 ℃
Dimension	40.716.88.1 mm
Note: for custom specs, please contact us directly.

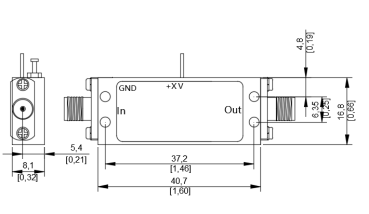

Outline Drawing (Unit: mm):

2 To 10 GHz 10dBm Power Amplifier with 30 dB Small Signal Gain
