Surface Acoustic Wave Saw Resonators 364.925MHz To 365.075MHz

Name: Surface Acoustic Wave Saw Resonators 364925MHz To 365075MHz
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SR-365-3070

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Contact Now

LT-SR-365-3070 LT-SR Series SAW Resonators with Frequency Range 364.925MHz to 365.075MHz
364.925MHz to 365.075MHz LT-SR Series SAW Resonator

Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 30V

· RF Power Dissipation: 0dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-365-3070 from ZR is a SAW Resonator with Frequency 364.925MHz to 365.075 MHz, Centre Frequency 365 MHz, Insertion Loss 1.5 to 2.0 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-365-3070 can be seen below.

Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)

Part Number : LT-SR-365-3070
Item		Unites	Min.	Typ.	Max.
Center Frequency		MHz	364.925	365.000	365.075
Insertion Loss		dB		1.5	2.1
Quality Factor Unload Q				12000
50Ω Loaded Q				1500
Temperature Stability	Turnover Temperature	℃	10	25	40
Temperature Stability	Freq.temp.Coefficient	ppm/℃2		0.032
Frequency Aging		ppm/yr		≤±10
DC. Insulation Resistance		MΩ	1.0
RF Equivalent RLC Model	Motional Resistance R1	Ω		-
	Motional Inductance L1	μ H		-
	Motional Capacitance C1	fF		-
Transducer Static Capacitance		pF		-
Note: for custom specs, please contact us directly.

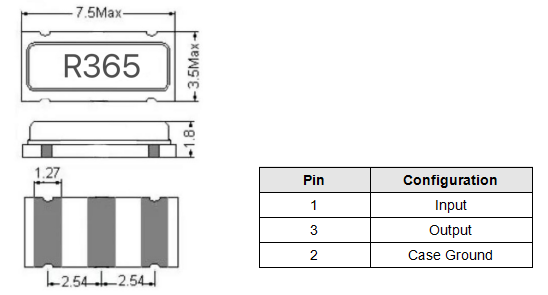

Outline Drawing (Unit: mm):

Surface Acoustic Wave Saw Resonators 364.925MHz To 365.075MHz

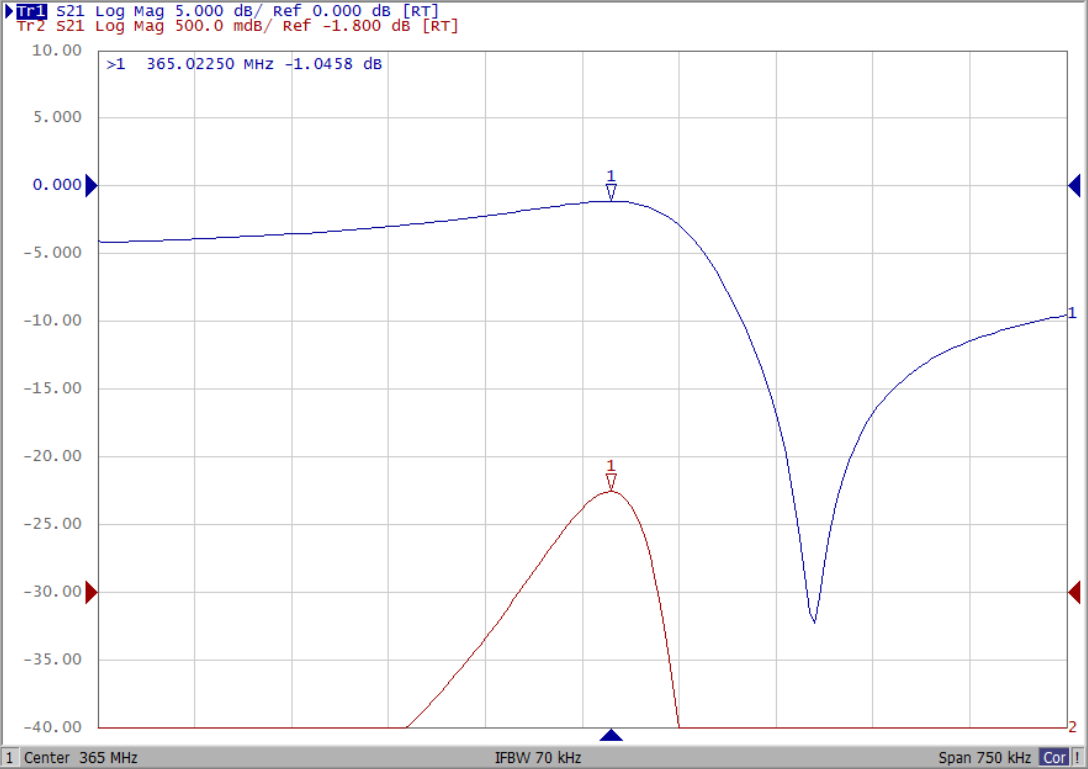

Typical Frequency Response
