1 To 20 GHz SP6T Absorptive PIN Diode Switch

Name: 1 To 20 GHz SP6T Absorptive PIN Diode Switch
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SW6TA-010200S

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-SW series PIN Doide Switch

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 1 to 20 GHz

Color : Silver

Contact Now

1 to 20 GHz LT-SW Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Fast Switching Time 100ns

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SW6TA-010200S from ZR is a Absorptive PIN Diode Switch with Frequency 1 to 20 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/300mA and -5V/50mA. More details for LT-SW6TA-010200S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-SW6TA-010200S
Type	Absorptive
Configuration	SP6T
Frequency Range	1 to 20 GHz
Insertion Loss	3.5 dB
Isolation	60 dB
Switching Speed	100 ns
Control	PIN
Input / Output VSWR	2.0:1
Input Power	1 W
Power Supply(Bias)	+5V / 300mA
Power Supply(Bias)	-5V / 50mA
Dimension	782410.20mm
Note: for custom specs, please contact us directly.

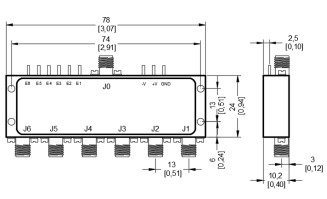

Outline Drawing (Unit: mm):

1 To 20 GHz SP6T Absorptive PIN Diode Switch
