LT-DC Series 20dB Directional Coupler 20 Watts Power 2 to 50 GHz Frequency

2 to 50 GHz 20dB Directional Coupler

Quick Detail:

· 20dB Directional Coupler

· Directivity > 9 dB

· 2 to 50 GHz Frequency Range

· Lost VSWR < 1.9:1

· Coupling 20±1.2 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC20-02050024 from ZR is a 20dB Directional Coupler that operates from 2 to 50 GHz and can handle up to 20 Watt (CW) with 9 dB directivity min and 1.9:1 VSWR max,The package interface uses 2.4mm Female connectors and is REACH and RoHS compliant.More details for LT-DC20-02050024 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

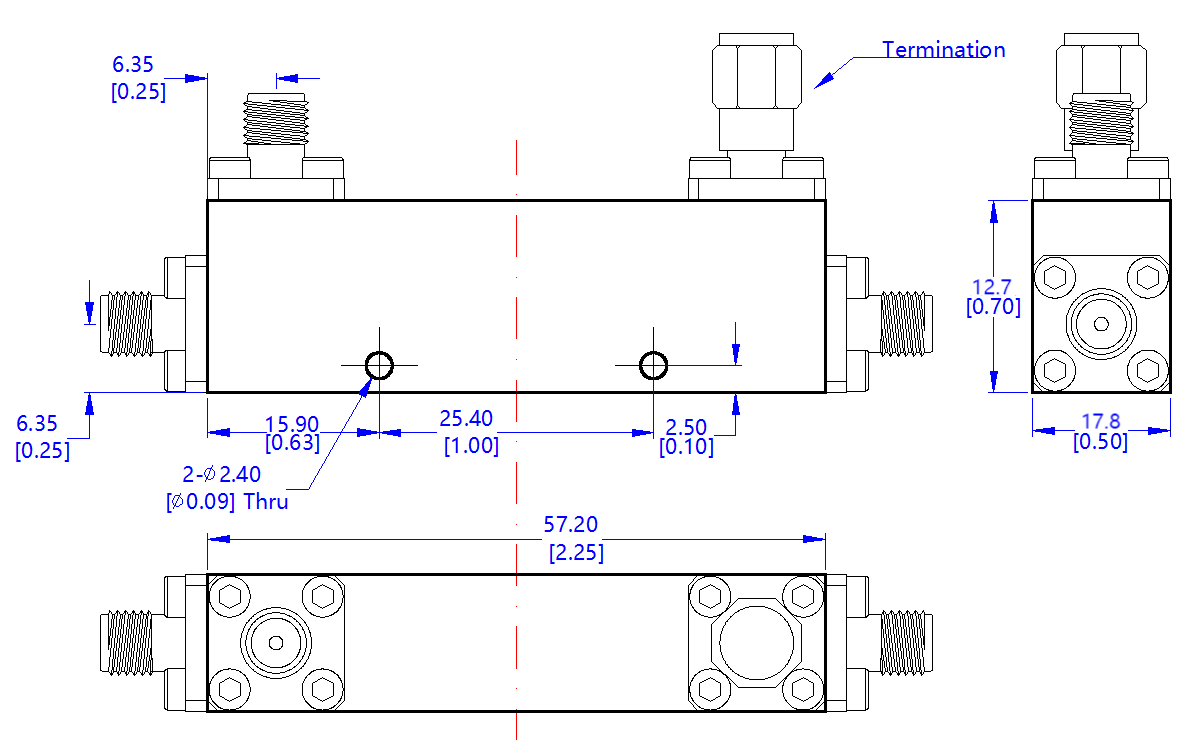

Outline Drawing (Unit: mm):

20 Watts Directional Coupler

50 GHz Directional Coupler

20dB Directional Coupler
